Specification
Company: Magna Automotive Hungary Kft.
(Antolin Hungary Kft., Helvécia)
Type: SH-1 7t / 1,8 x 2,72m / 180˚
Capacity: 7000 kg
Length of the equipment: 2720 mm
Width of the equipment: 1800 mm
Rotation time: 63s
Weight: 5693 kg
Power output: 3 kW
Control voltage: 24 V
IP code: IP 54
Supply voltage: 3 x 400 V, 50 Hz N+PE
Amperage: 3 x 16A

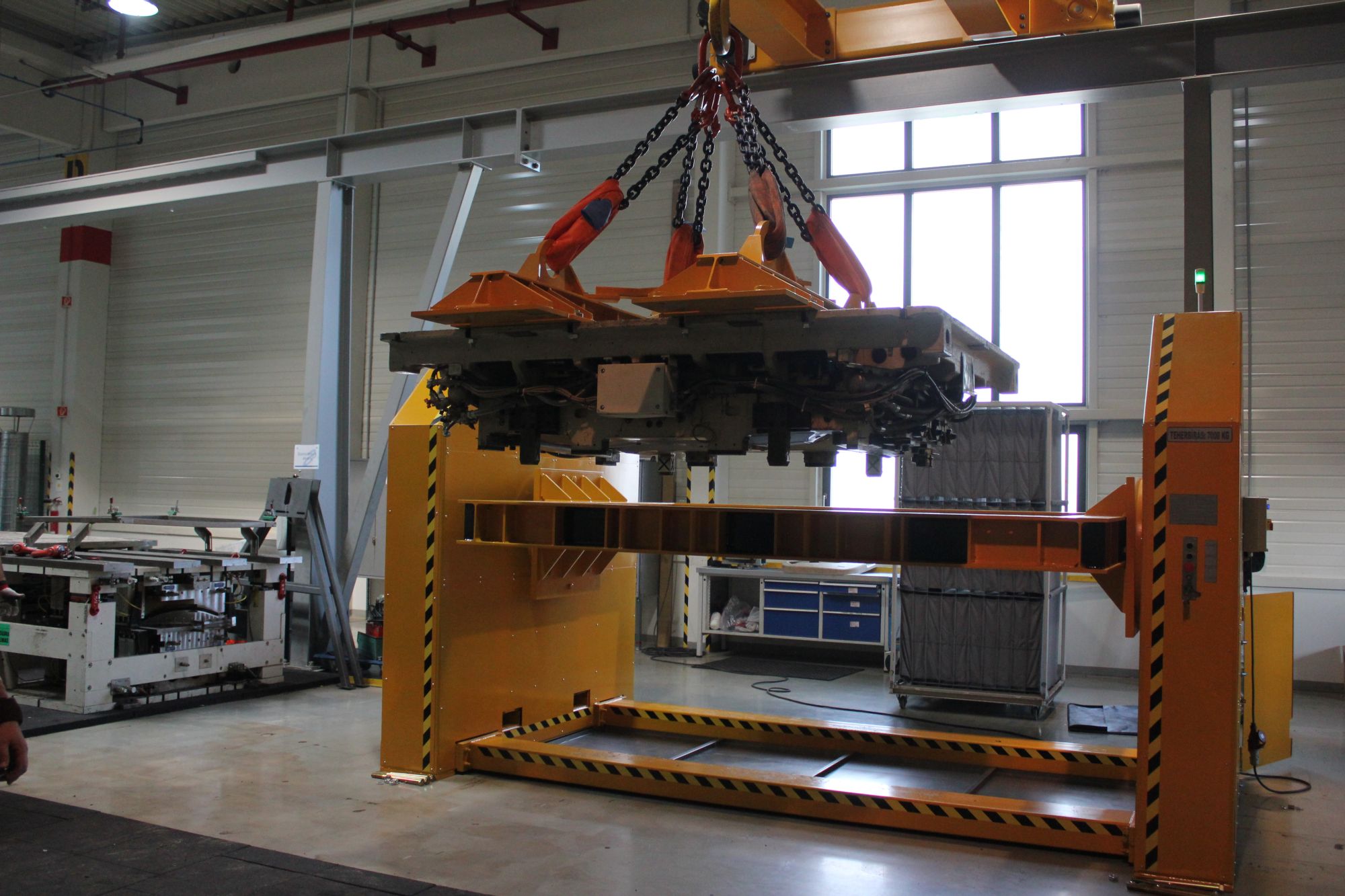

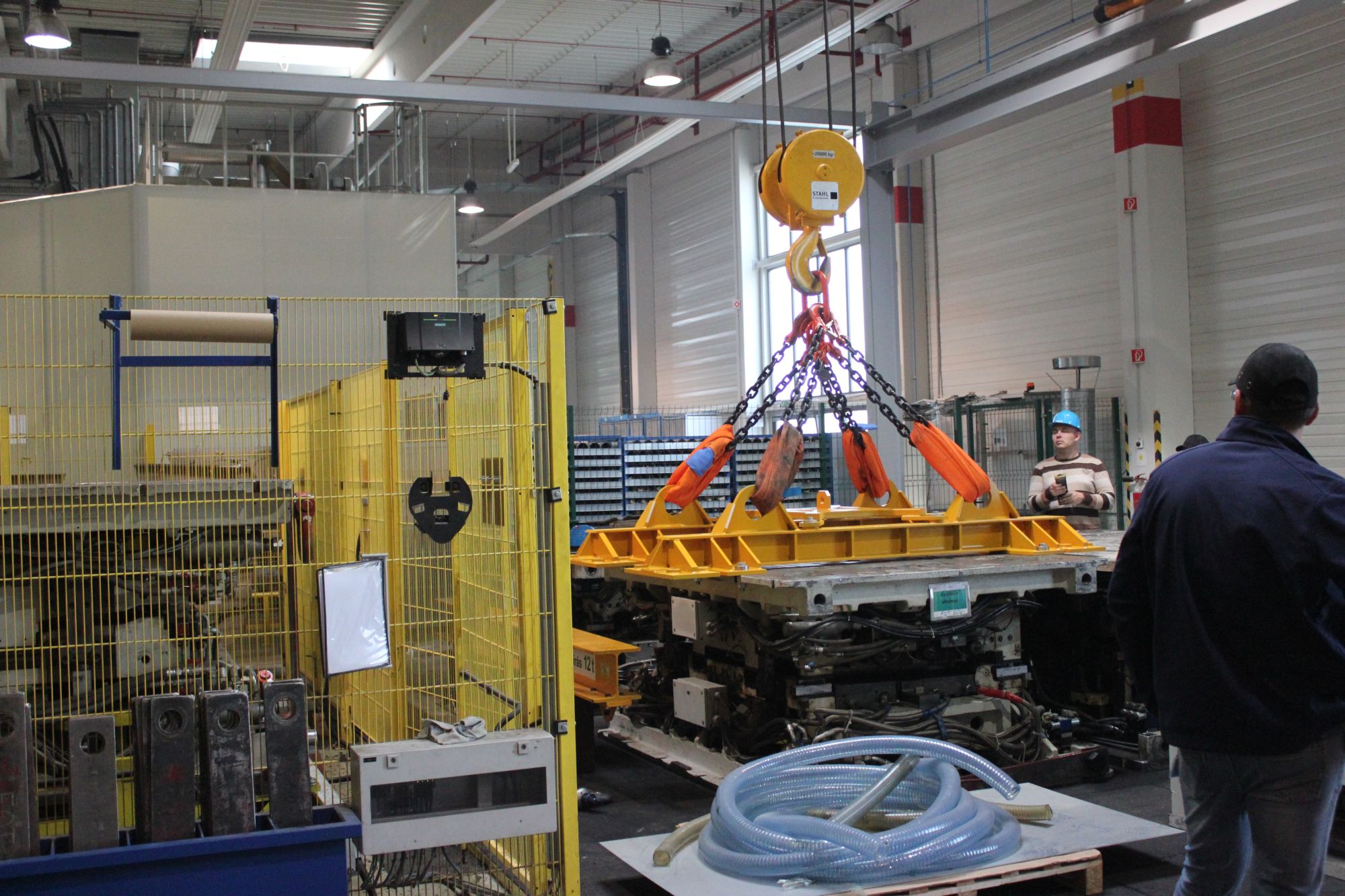

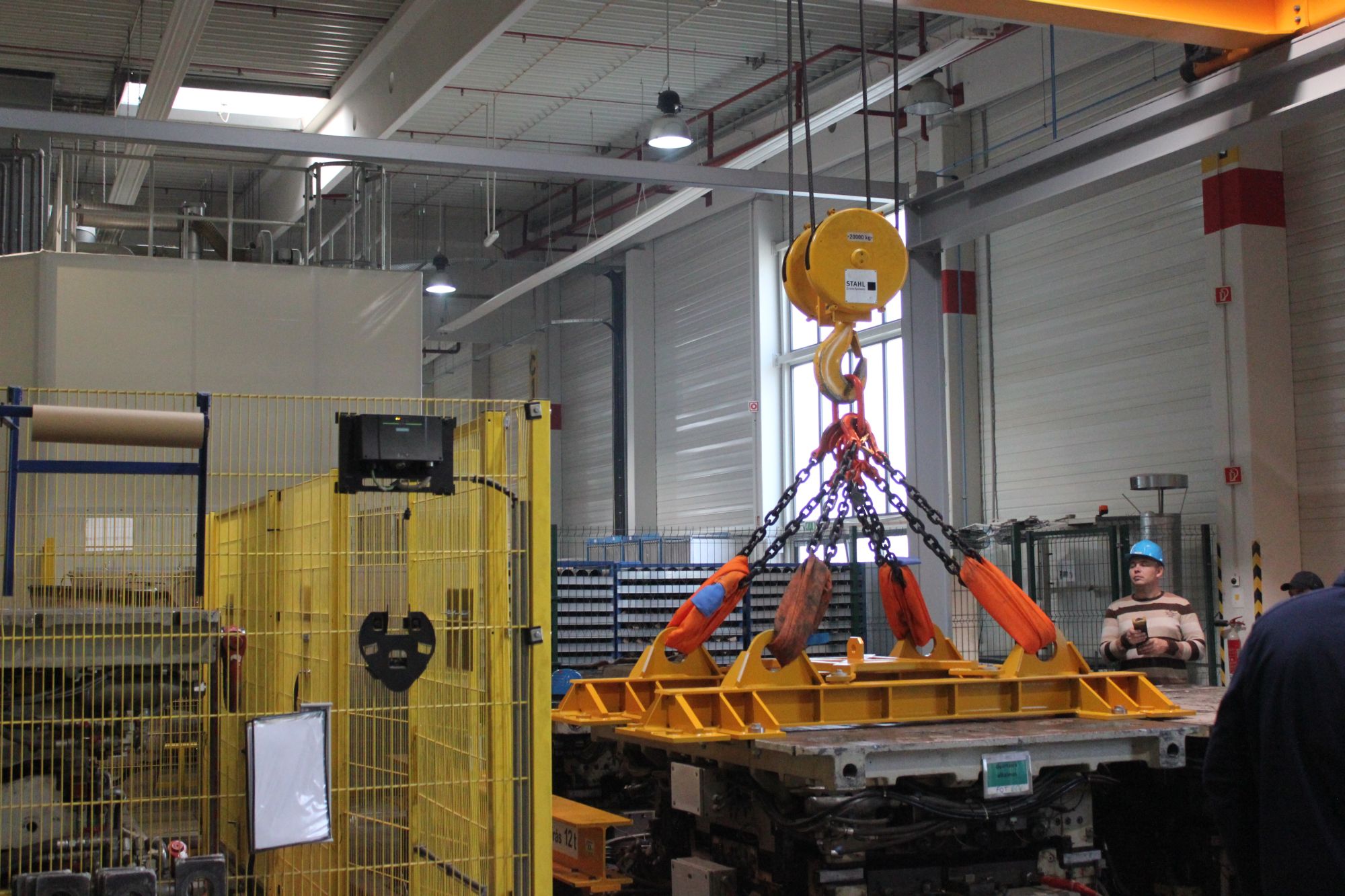

The employees of Antolin has reached out to us because they had a problem with the maintenance of the equipment you can see in the pictures. They needed a device that can safely rotate the equipment and keep it in place for the required time.
How to use the device:

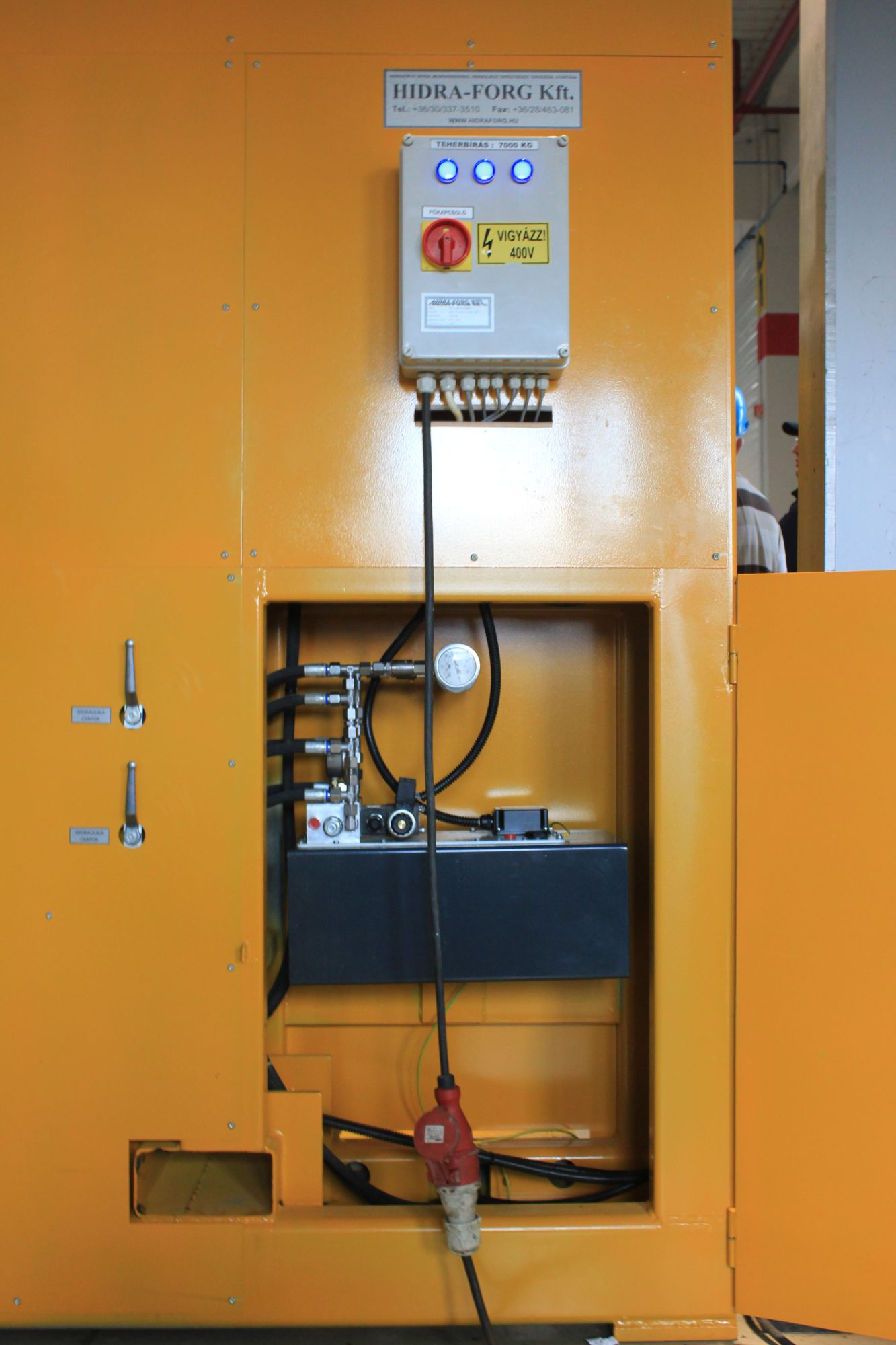

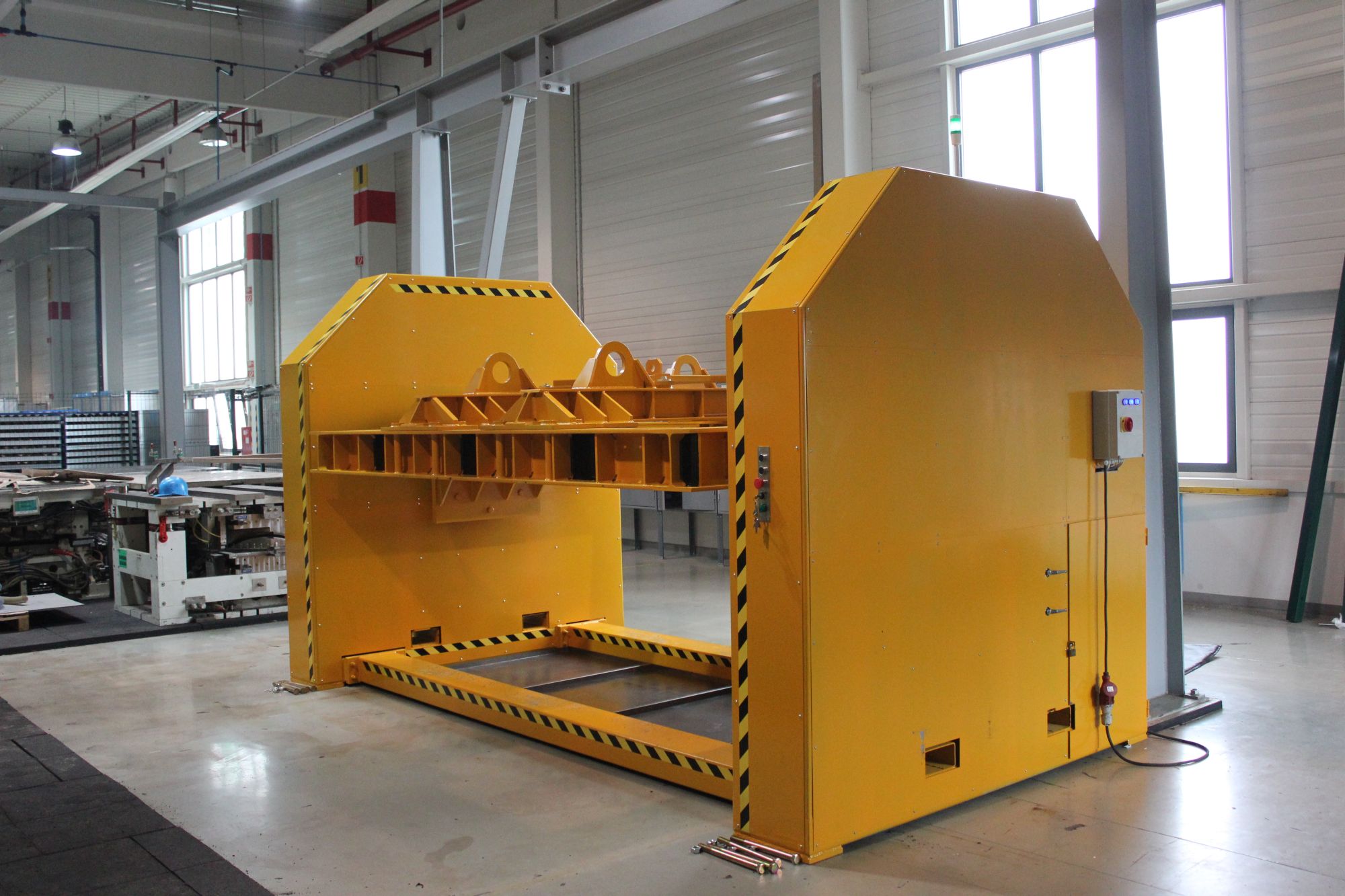

There are 2 frames in the device. The equipment is bolted to the inner frame and then the frame is bolted to the rotating frame. While the button is pressed the device is rotating, once the button is not pressed, the device stops rotating.(tottman)
The frames can be adjusted to the need of the customer (holes and other dimensions), if necessary, we can make more (inner) frames for the same device, so it can be used for more than one equipment
Specification
Company: Michelin
Hungary Kft., Nyíregyháza
Type: SVT-1/ 2t/ 0,3m/
D1,7m
Capacity: 1000 kg
Height: 600 mm
Maximum stroke: 300 mm
Platform size: D 1700 mm
Lifting time: 10s
Supply voltage: 3×400 V 50 Hz
Output power: 3 kW
Control voltage: 24 V =
IP code: IP54
Weight of the lift table without the hydraulic unit: 924 kg
Amperage: 3 x 16A

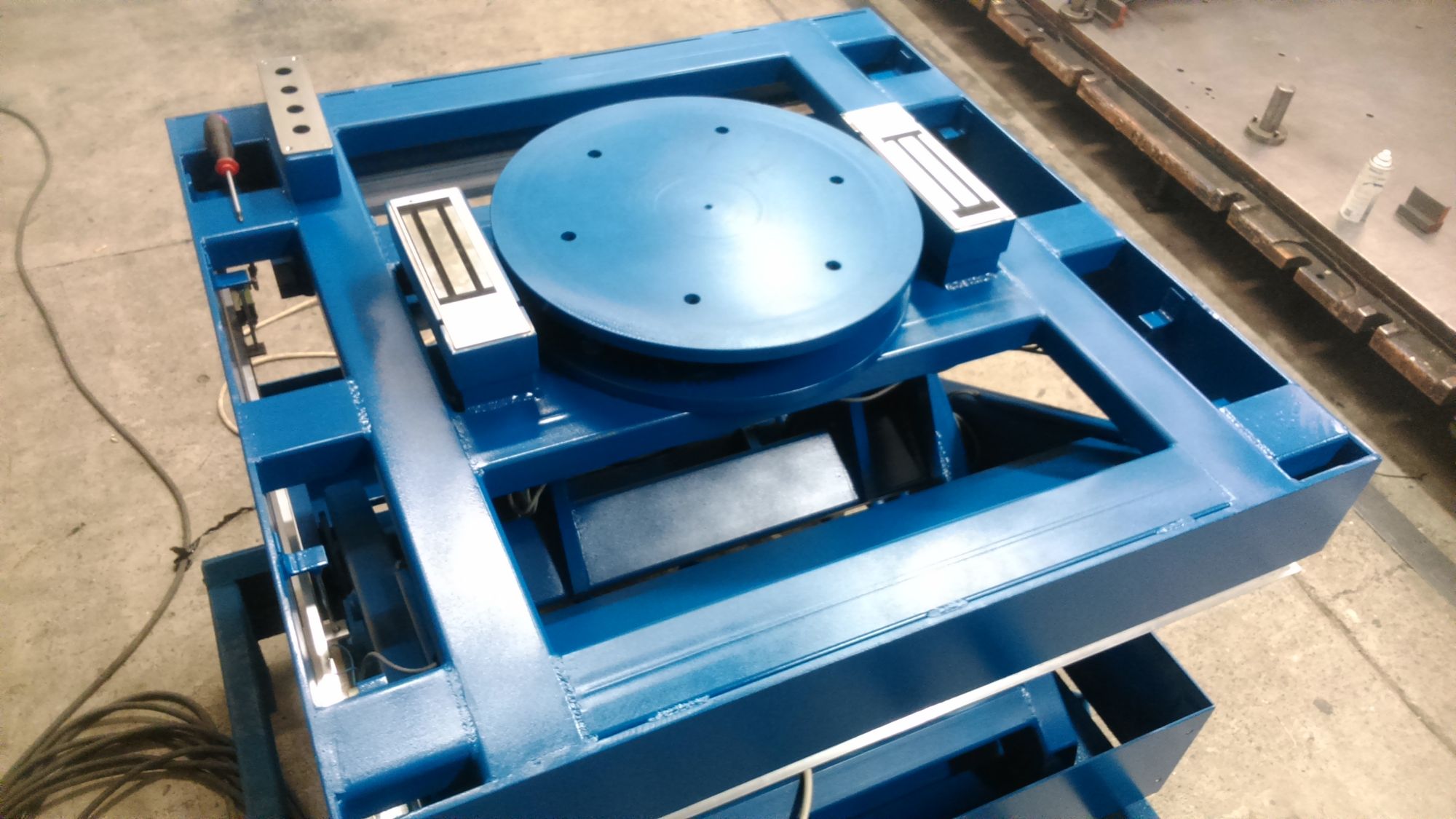

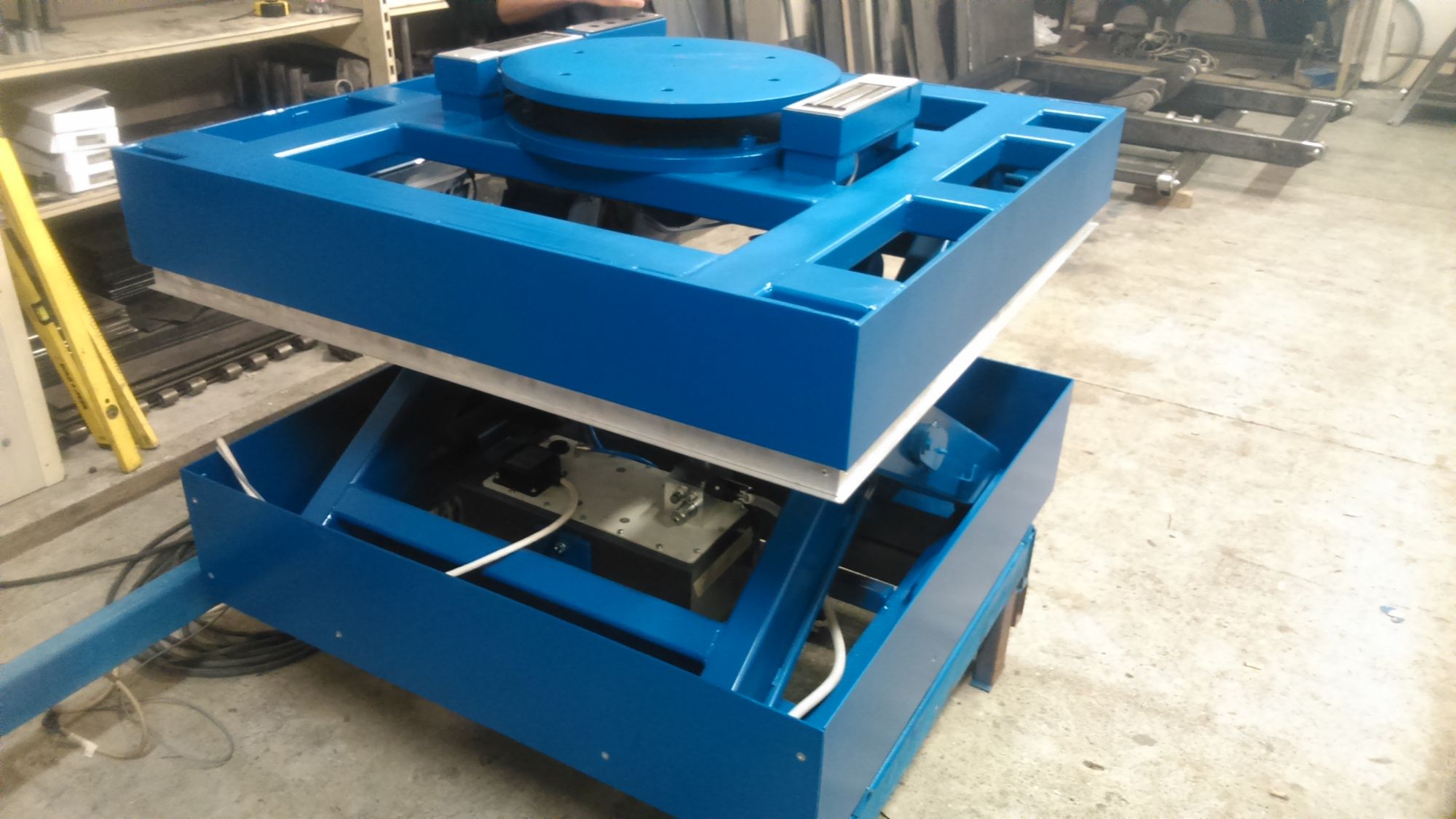

Once the lift table platform is at the required height, the customer can rotate the
platform to the desired position and continue the assembly.
Specification
Company: Michelin Hungary Kft., Nyíregyháza
Type: SH-1 1t / Ø1,25m / 180˚
Capacity: 1000 kg
Diameter of the equipment: 1250 mm
Rotation time: 15-22s
Weight: 14 kg
Power output: 1,5 kW
Control voltage: 24 V
IP code: IP 54
Supply voltage: 3 x 400 V, 50 Hz N+PE
Amperage: 10A
This machine is installed in a pit. It is used to rotate cable bobbins, since these products are heavy and hard to turn, they wanted a device they can move the bobbin onto, so it can be turned easily without too much manpower.
